POWER SUPPLIES
AC power input 100-240V, 50/60 Hz
INPUT POWER
700 VA @230Vac - 50Hz
LIGHT SOURCE
Source: PHILIPS-MSD Silver 480W LL
MOTORS
Stepper motors, operating with micro-steps, totally microprocessor controlled
CHANNELS
31 control channels
INPUTS
DMX 512 – Art-Net
IP RATING
IP 20 - Protected against the entry of solid bodies larger than 12mm (0.47”); No protection against the entry of liquids.
SAFETY SPECIFICATIONS
Minimum distance of illuminated objects 8 meters Minimum distance from flammable materials 0.2 meters
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
Automatic break in power supply in case of overheating Forced ventilation with axial fans
ELECTRONICS
Long life self-charging buffer battery Function reset from the lighting desk “AUTOTEST” function from menu Electronic monitoring with status error Cooling system monitoring
DMX level monitoring on all channels Internal data transmission diagnostics Firmware Upgrade via Web Server Firmware upload from another fixture Protocols/Functions: RDM, Web Server
OPTICS
Zoom 3°- 36°, Linear and motorized
EFFECTS SECTION
Six beam reducers (down to 0.5°) CMY color mixing
15 colors on 3 wheels
2 CTO filters
Rotating Gobo Wheel: 8 interchangeable glass gobos
Static Gobo Wheel: 18 fixed gobos
Rotating 4-facet prism on dedicated channel Rotating 8-facet prism on dedicated channel Dynamic Animation disc
Linear soft edge frost filter Dimmer and stop/strobe
Dense, Sharp, Parallel Light Beams Extremely quick movements Excellent visual effect projections Wide and sharp aerial effects
CONTROL AND PROGRAMMING
DMX 512 control channels Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net Display Graphic LCD backlit b/w Display
Display battery Long life self-charging buffer battery
Pan/Tilt Resolution 16 bit Focus Resolution 16 bit Gobo Resolution 16 bit Dimmer Resolution 16 bit

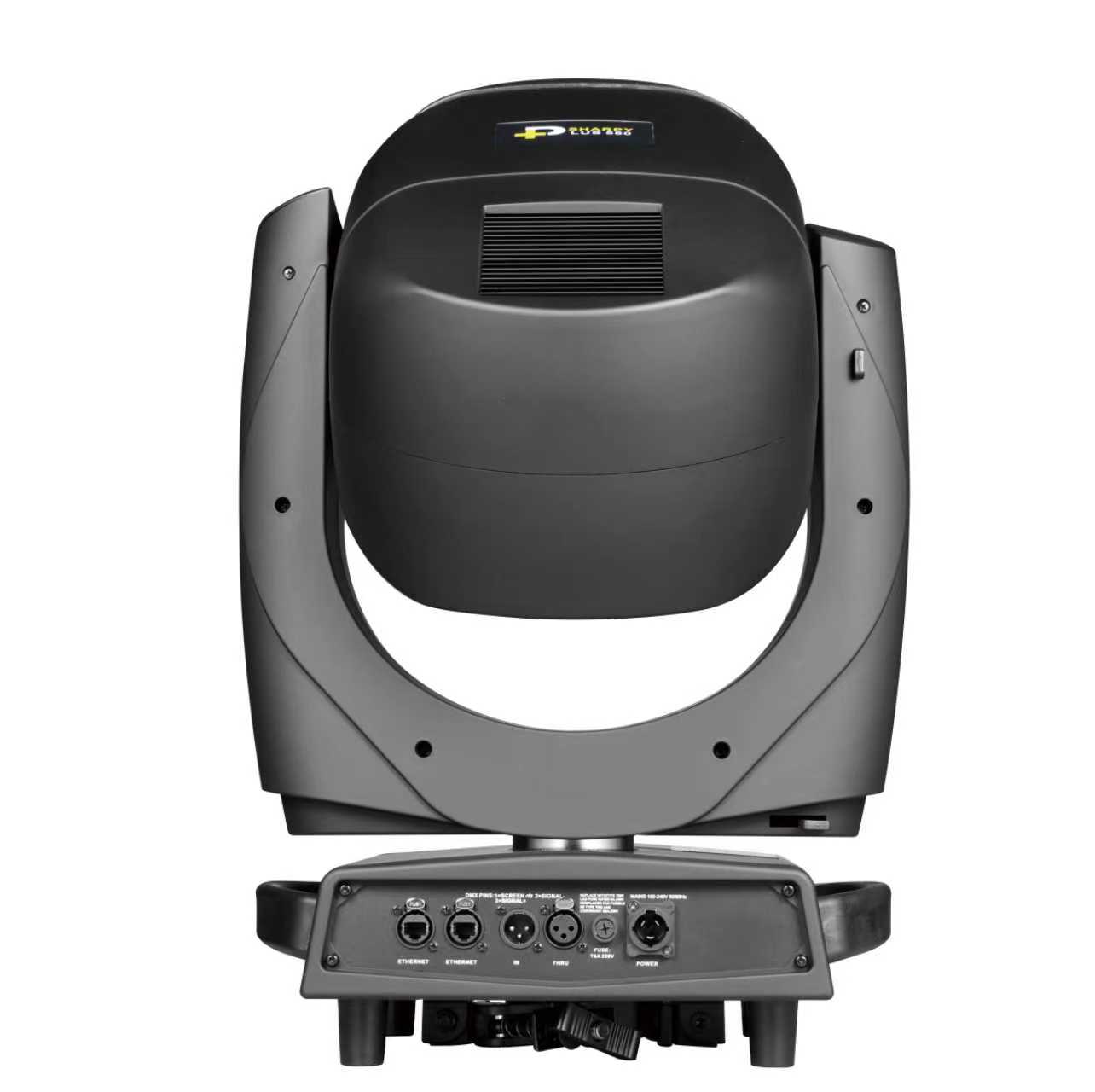

DMX signal connection 5 pole XLR input and output Ethernet Input
Firmware update Software upload through Ethernet input

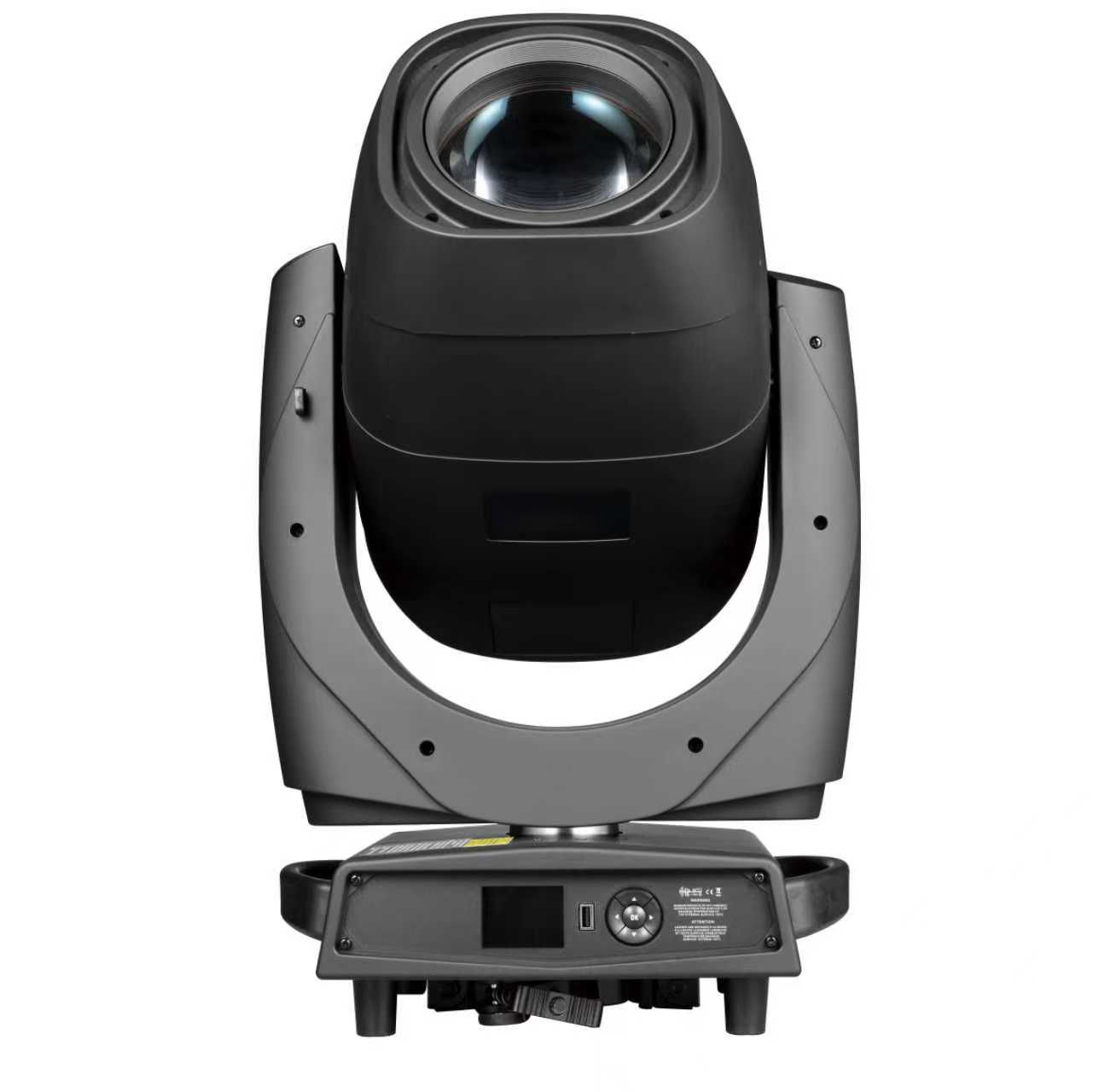

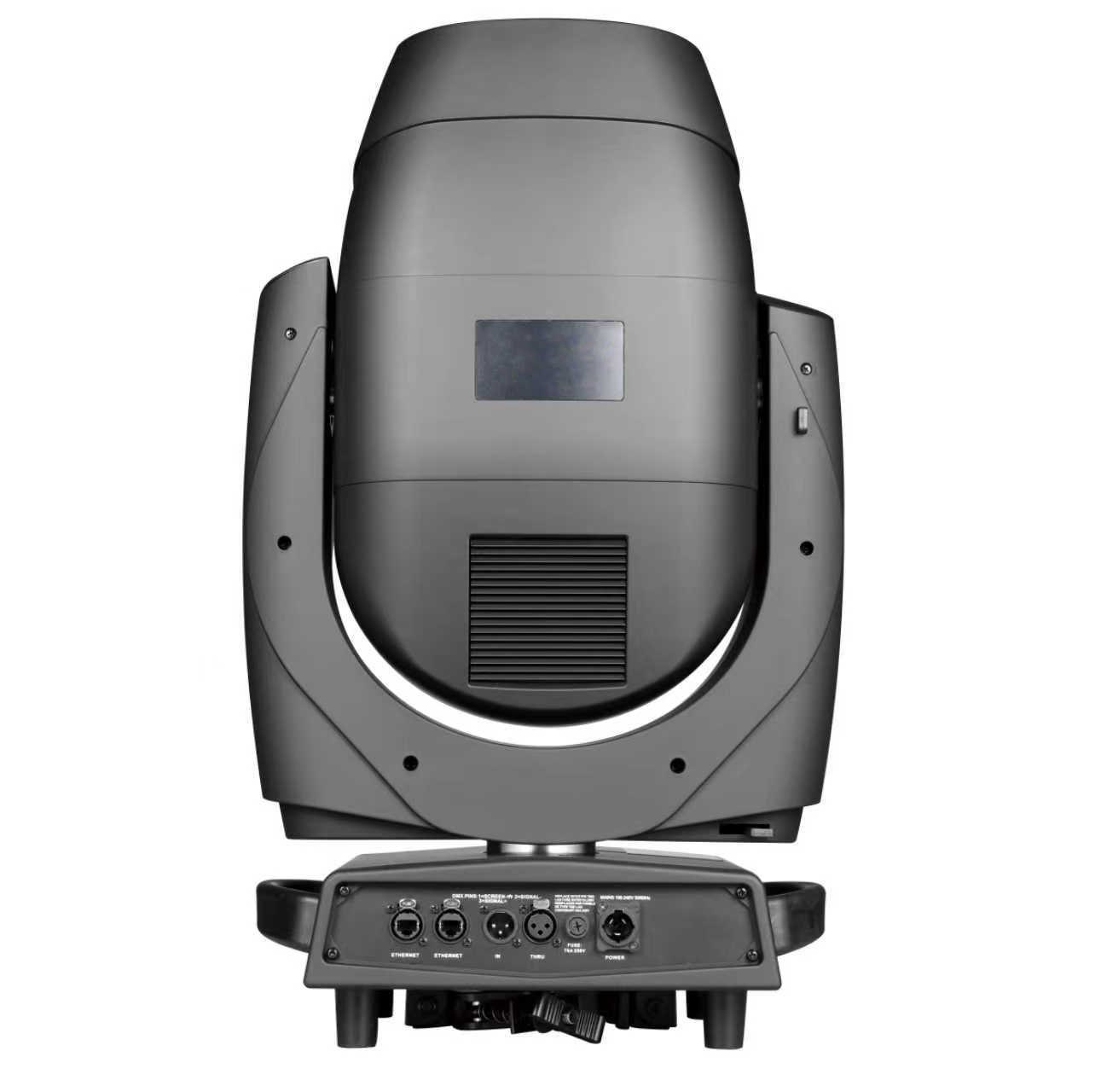

BODY
Aluminum and steel structure with plastic covers Two side handles for transportation Device locking PAN and TILT mechanisms for transportation and maintenance
MOVING BODY
PAN range 540°
TILT range 270°
WORKING POSITION
Working in any position Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MARKING
In conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
WEIGHT & DIMENSIONS
23.0 Kg
