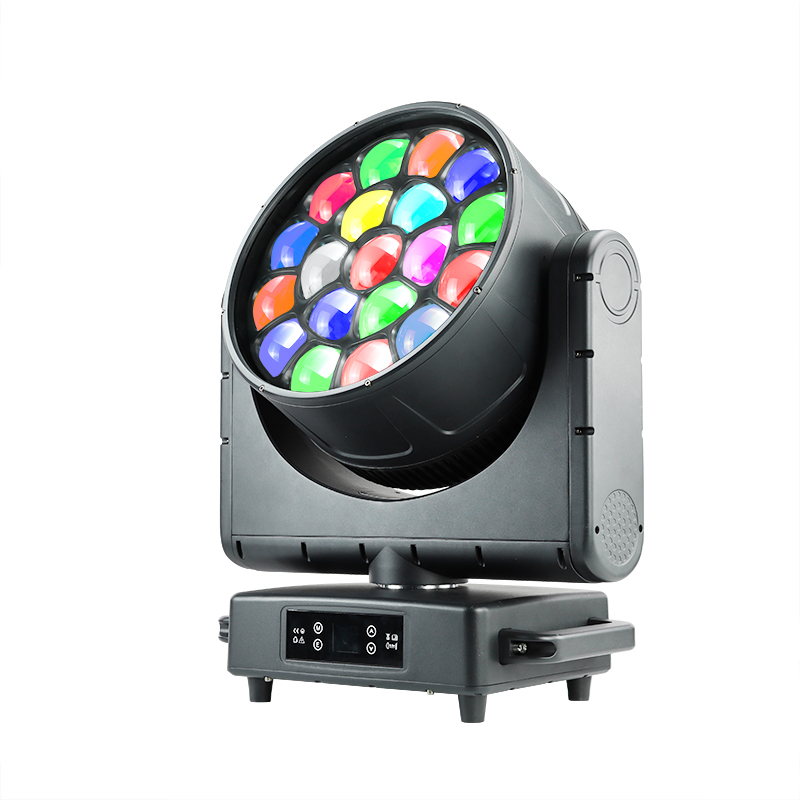

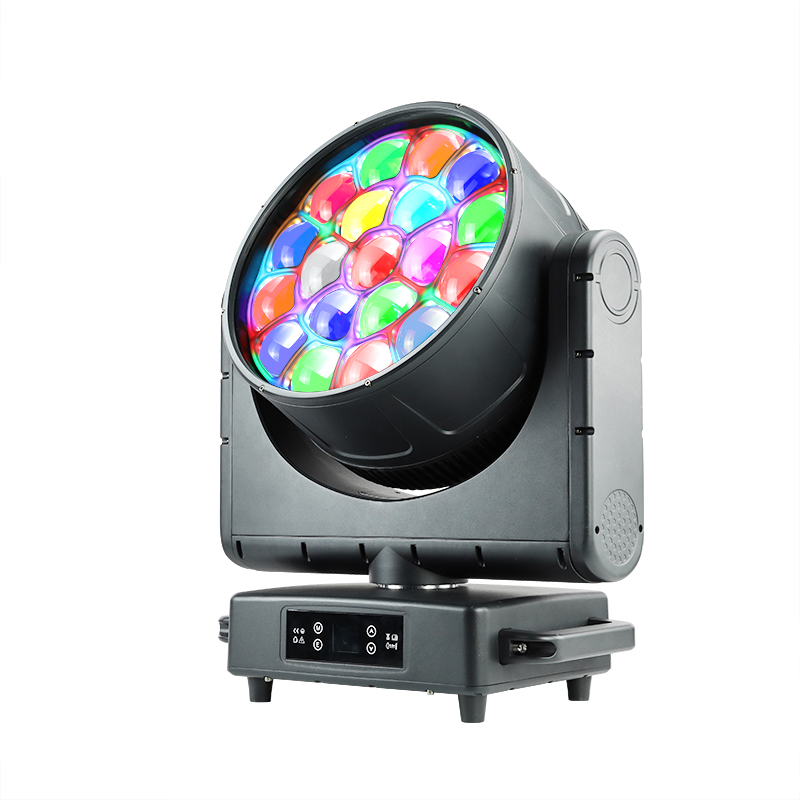

LIGHT SOURCE

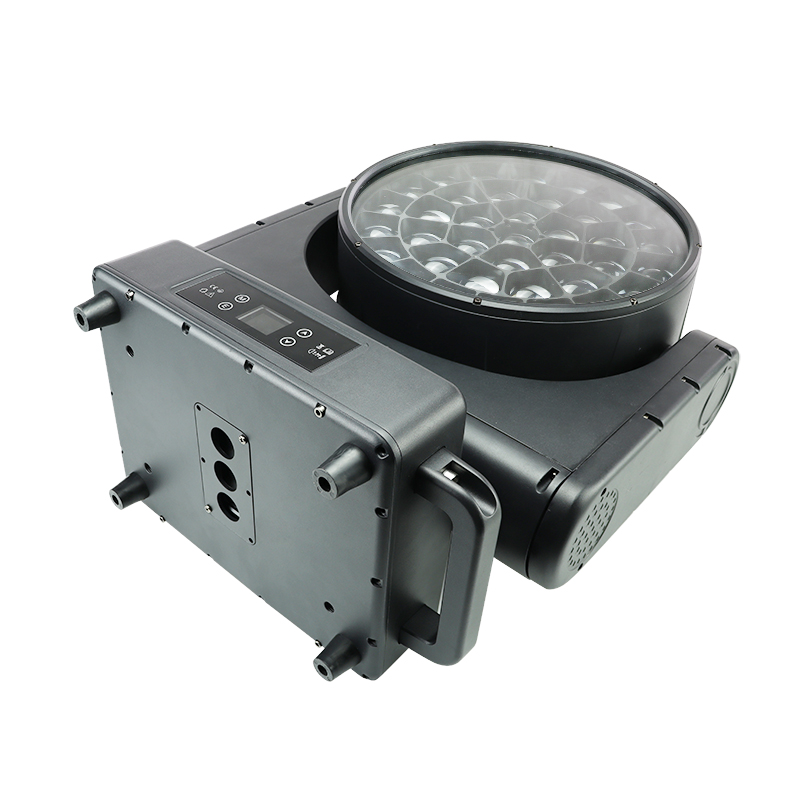

19 x 80W RGBW LED sources
Rated life: L70: up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
PAN and TILT automatic repositioning
Moving-head range: 540 ° pan & 270 ° tilt
COLOURS
Sophisticated 4 colours RGB-W mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8-bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
EFFECTS
2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FEATURES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection

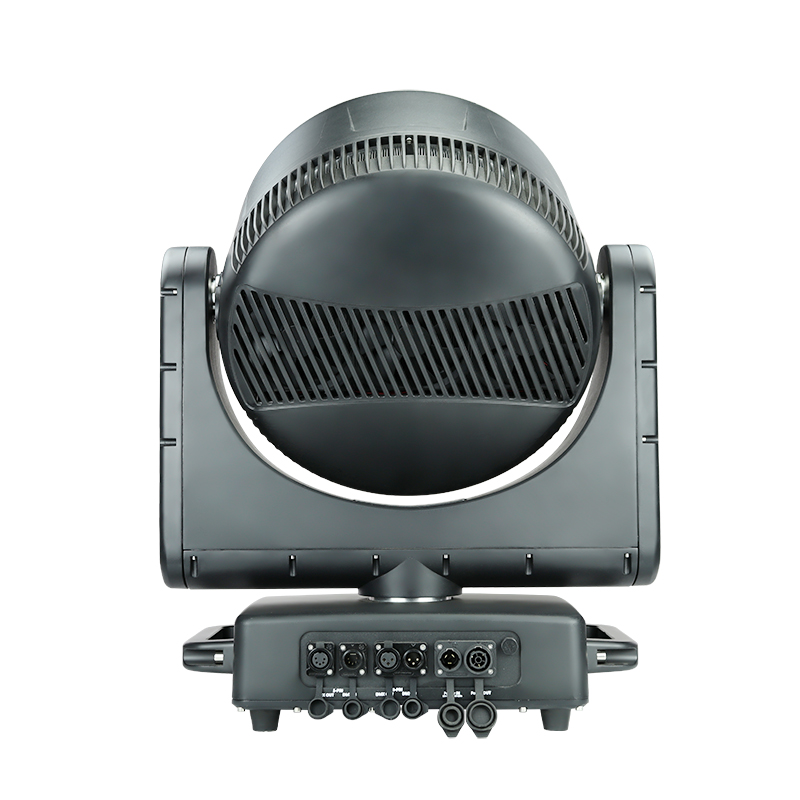

IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet＆#8482; connection
IP65 powerCON TRUE1 IN / OUT connectors for power connection
CONTROL
DMX 512 protocol, through DMX cable or wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet＆#8482; & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (from 26 to 67 DMX channels)
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 1200W maximum
