TECHNOLOGY REFERENCE
Power Supply
Input Voltage: AC 90–260V, 50/60Hz
Power: 1300W
Light Source

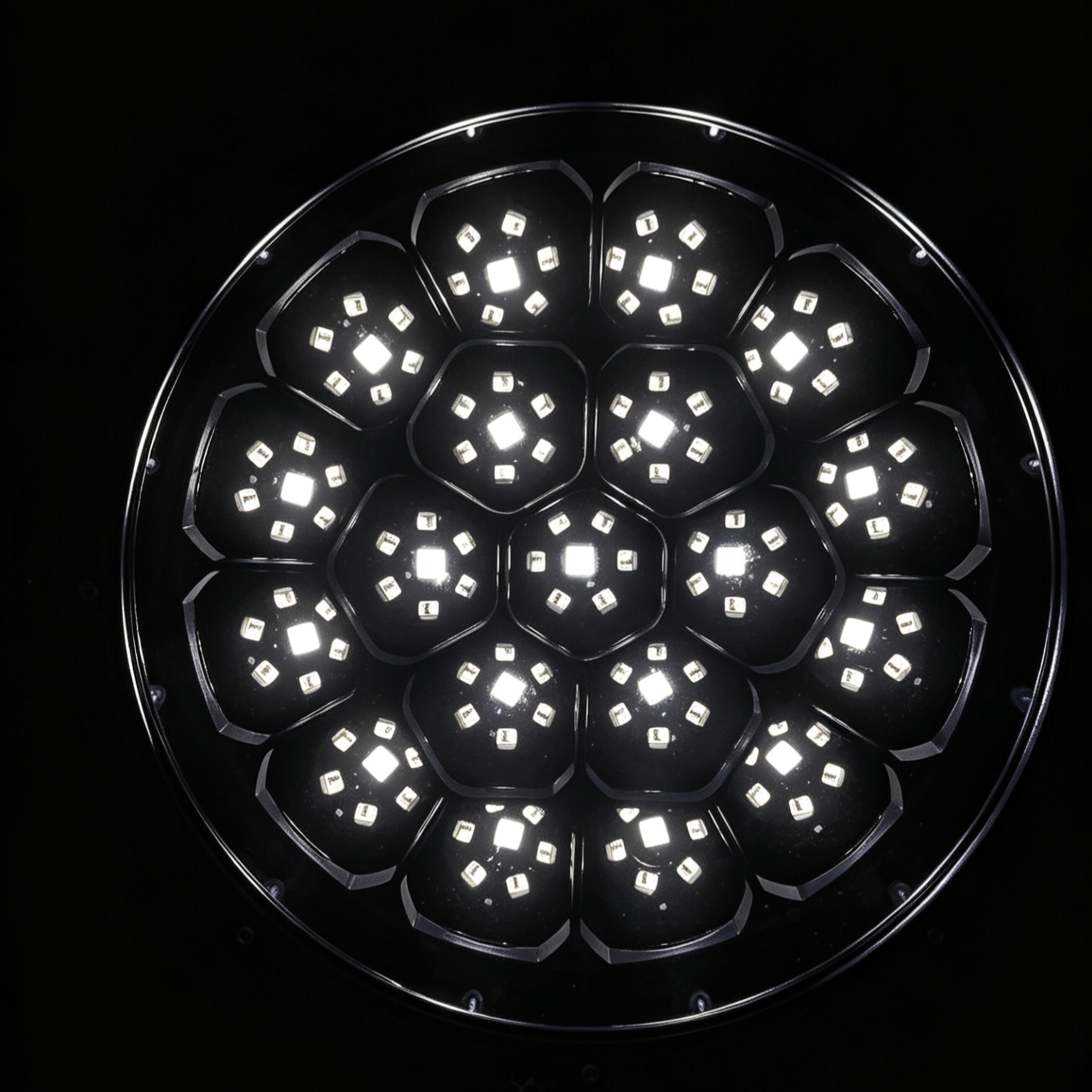

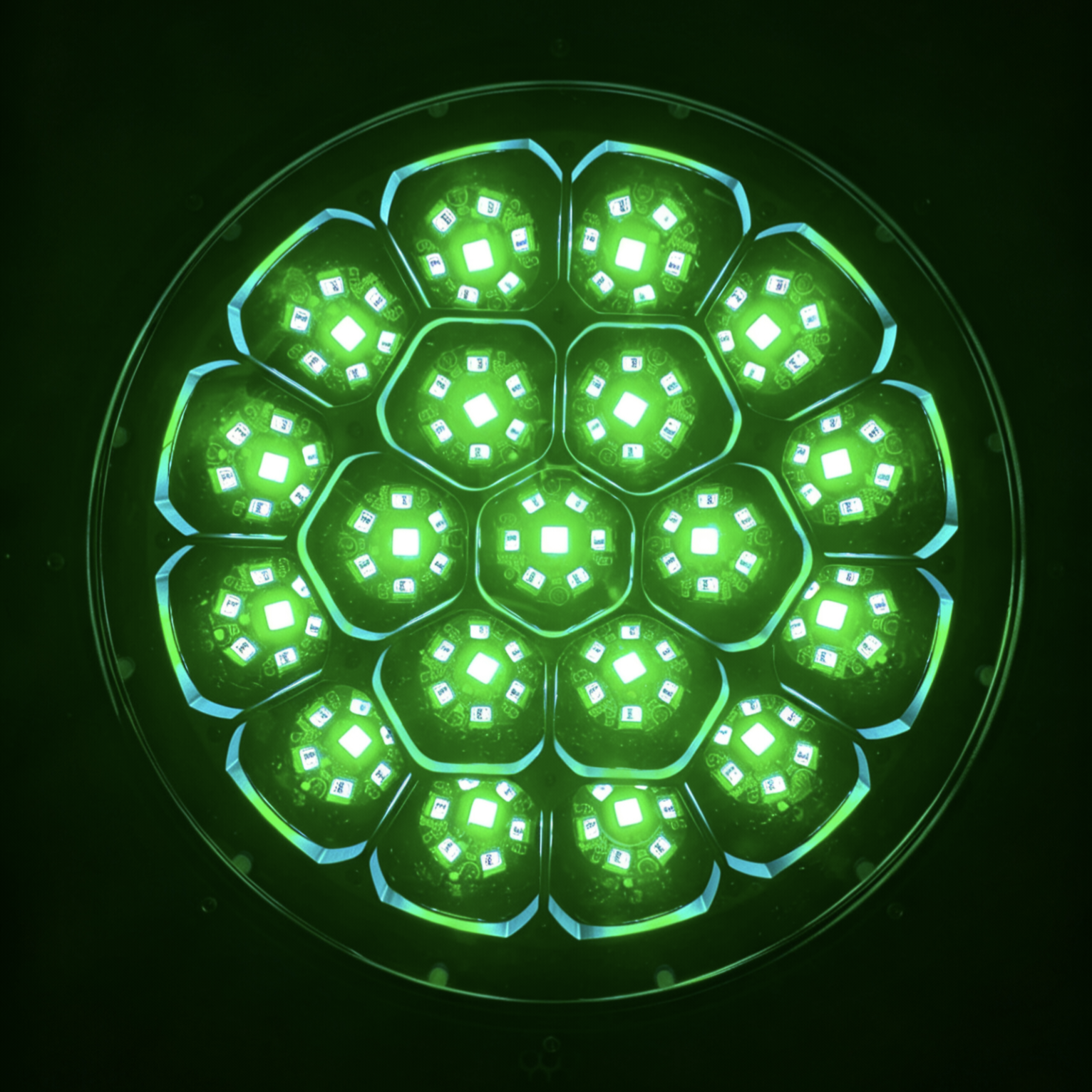

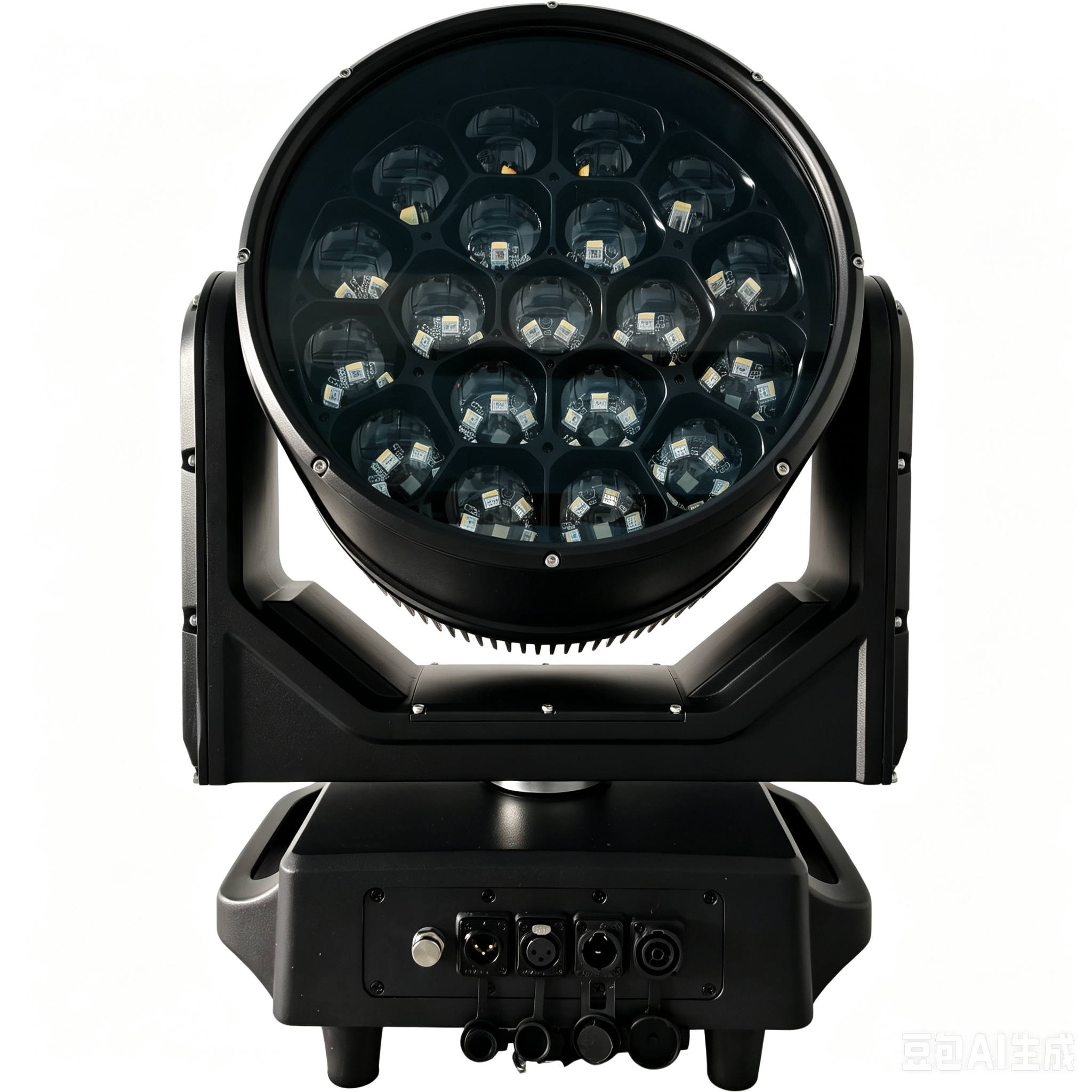

LED Chip: Tianxin 60W RGBW 4-in-1 LED Chip

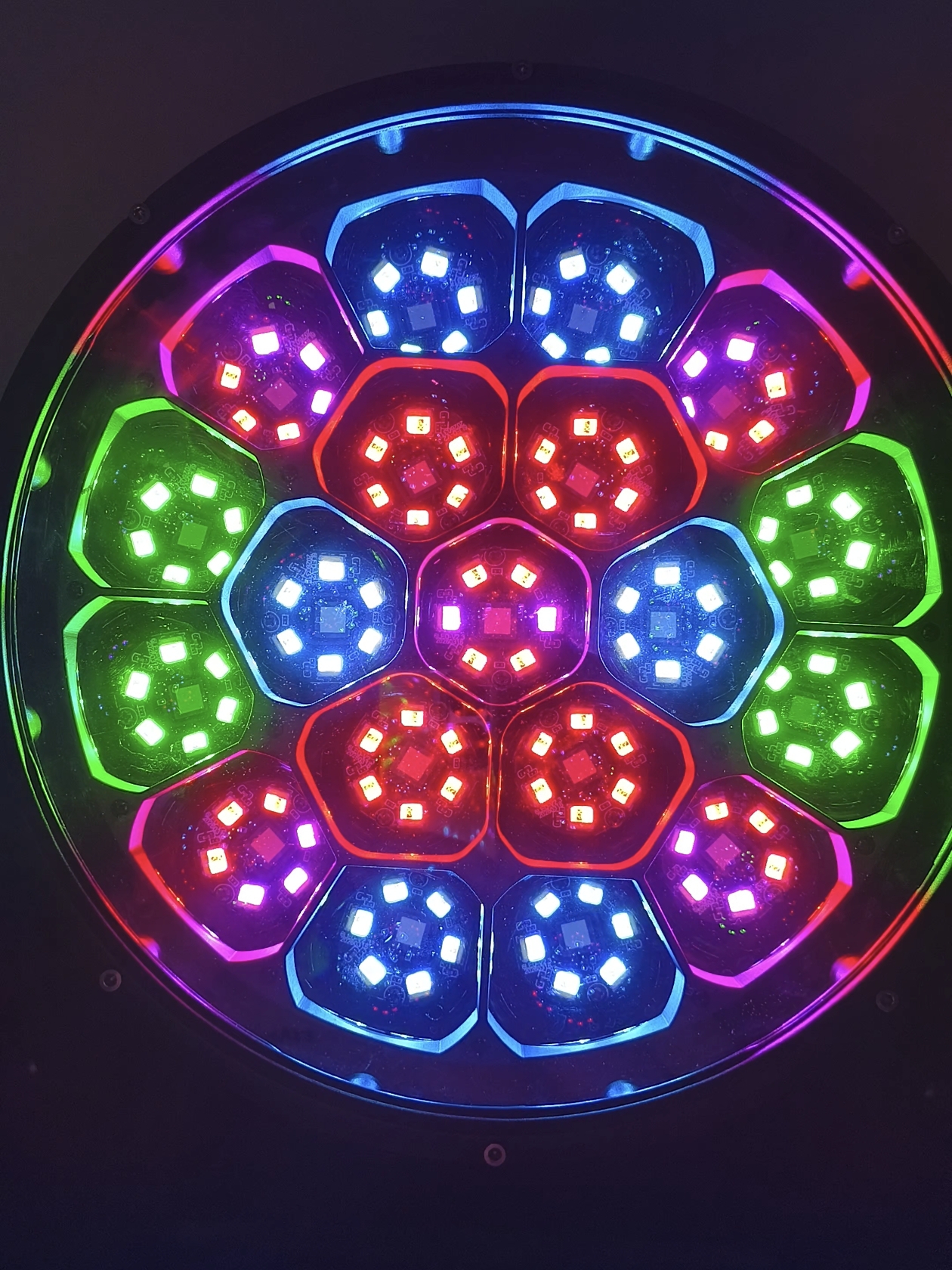

LED Quantity: 19 pcs LEDs, single individual pixel & single color controllable
LED Lifespan: 50,000 hours
Color Temperature: 2500K–9000K
Optical System
Zoom Range: 4°–60°;
Illuminance: 39,000 Lux @ 5m at minimum beam angle
Supports Wash, Beam, Gobo & Pattern, and special effect functions
Front lens disc with bidirectional infinitely variable speed rotation (fast/slow adjustable)
Built-in abundant pre-programmed effect libraries
Additional Functions
4 types of 0–100% linear dimming modes
Strobe Frequency:
Min. 1 flash/second;2
Max. 25 flashes/second
Pan & Tilt
Pan: 540°
Tilt: 270°
Control & Program
Control Protocol: DMX512 / RDM / Art-Net
DMX Channel Modes:21CH/23CH/35CH/21ACH/23ACH/35ACH

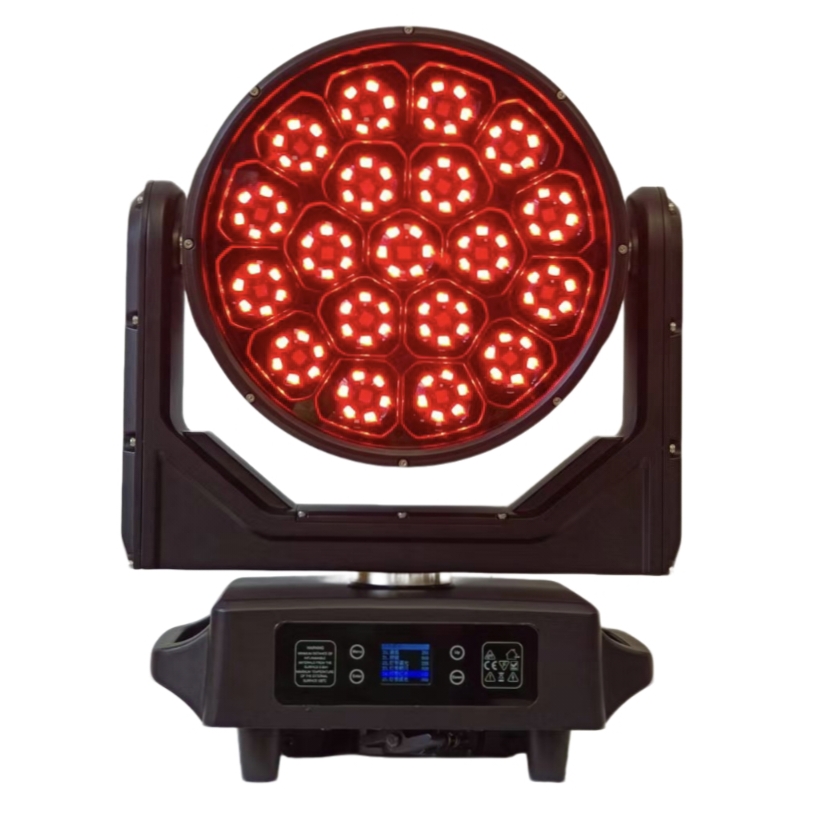

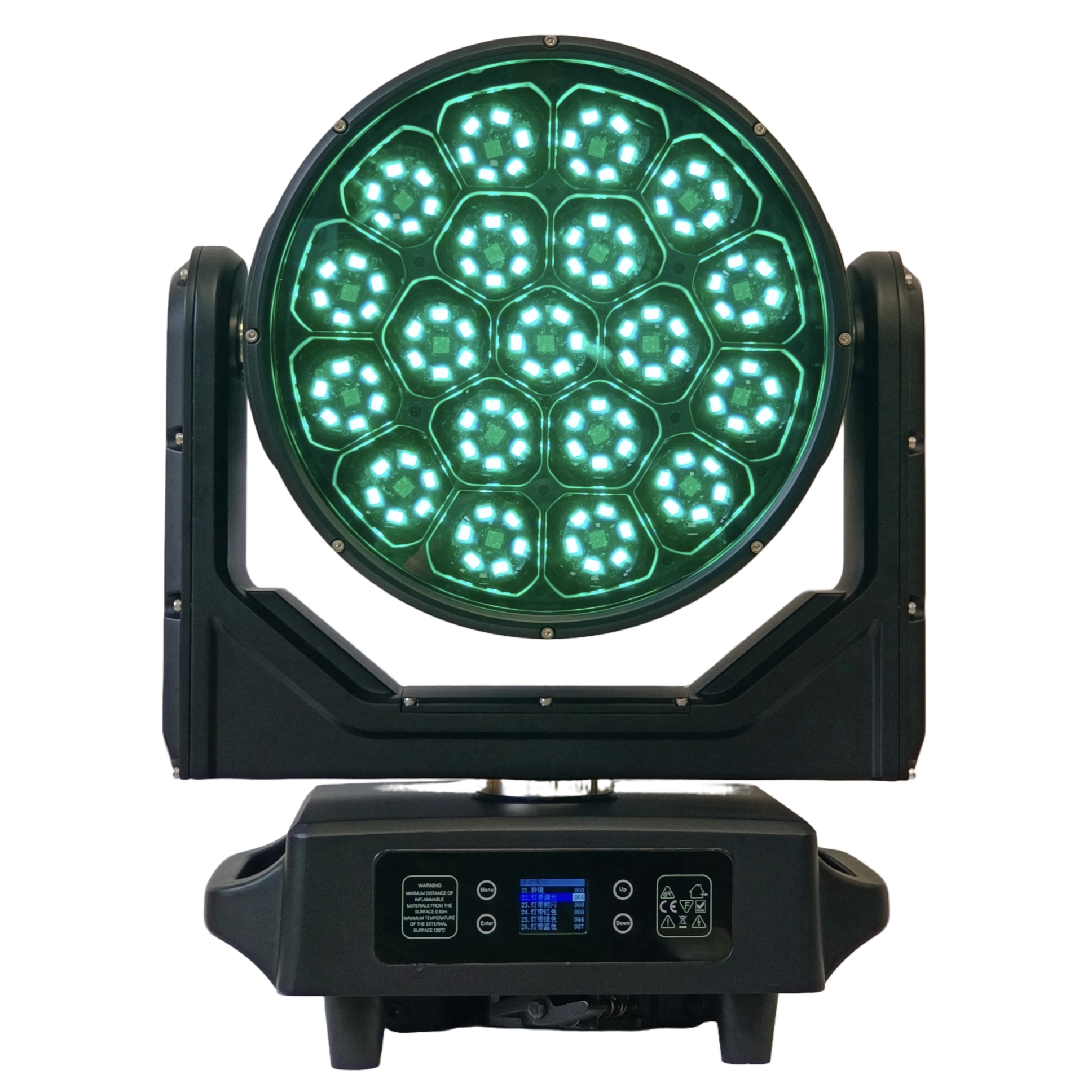

Display Panel: LCD Display Screen

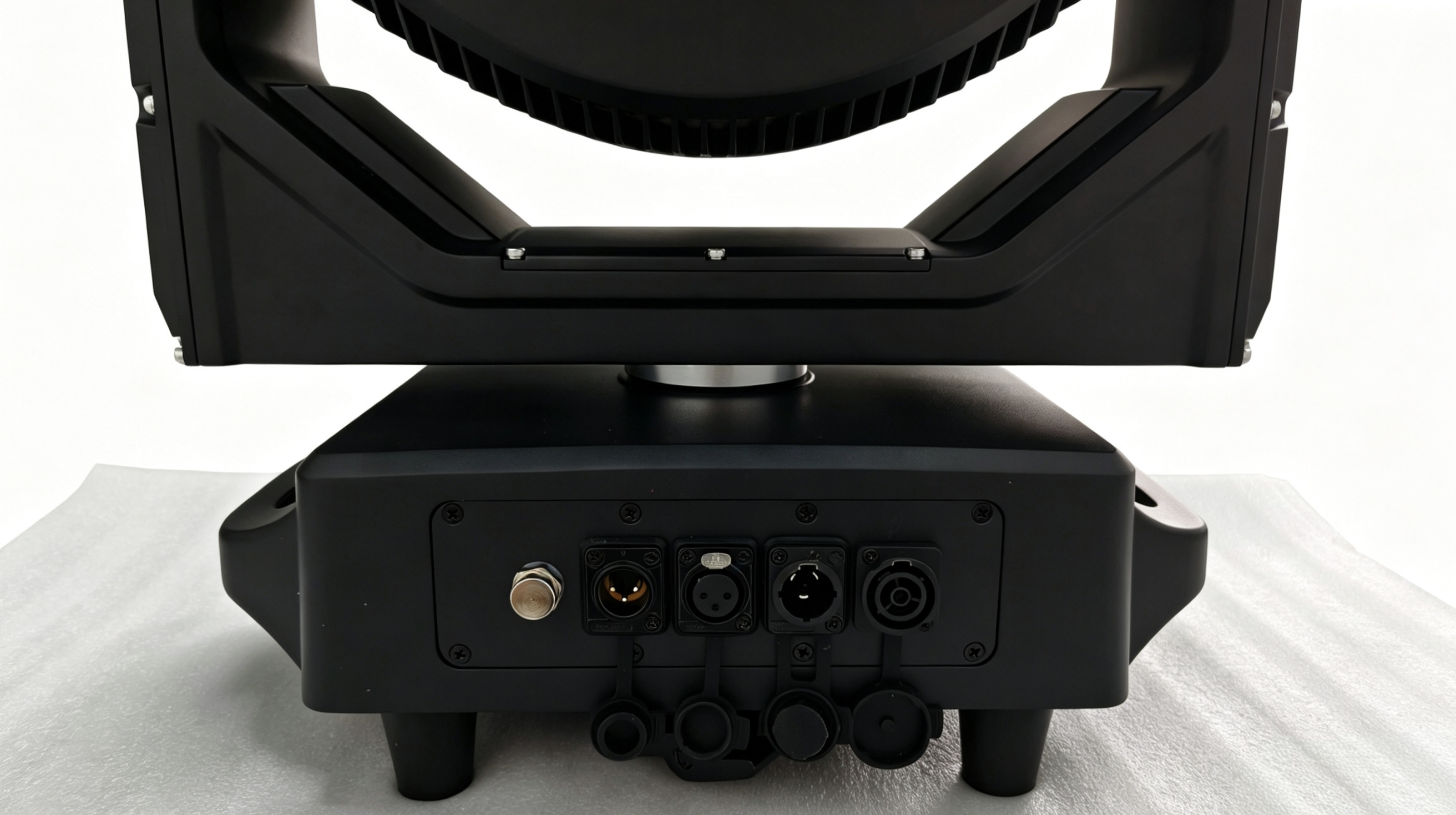

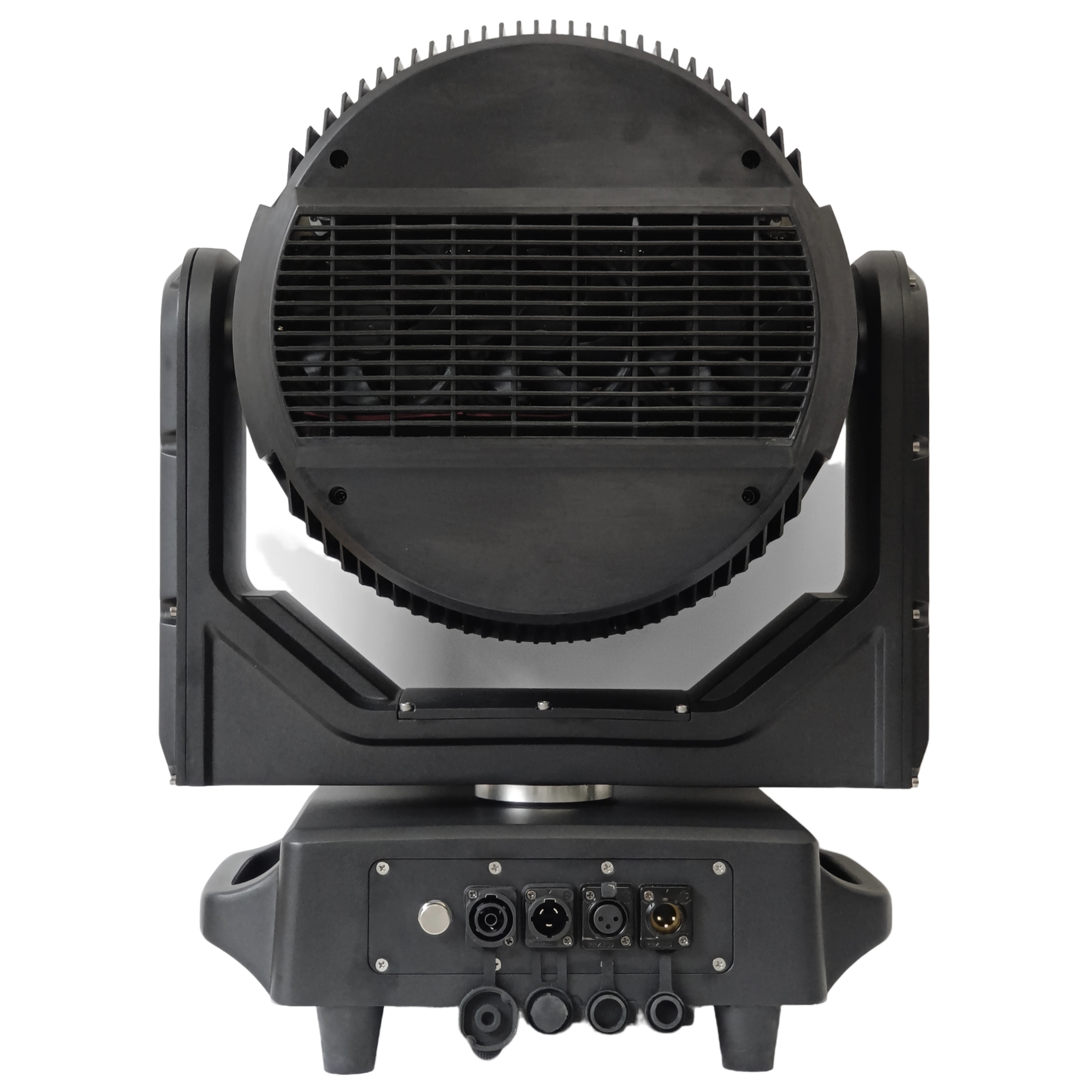

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector
Firmware Upgrade: Supported via DMX connection

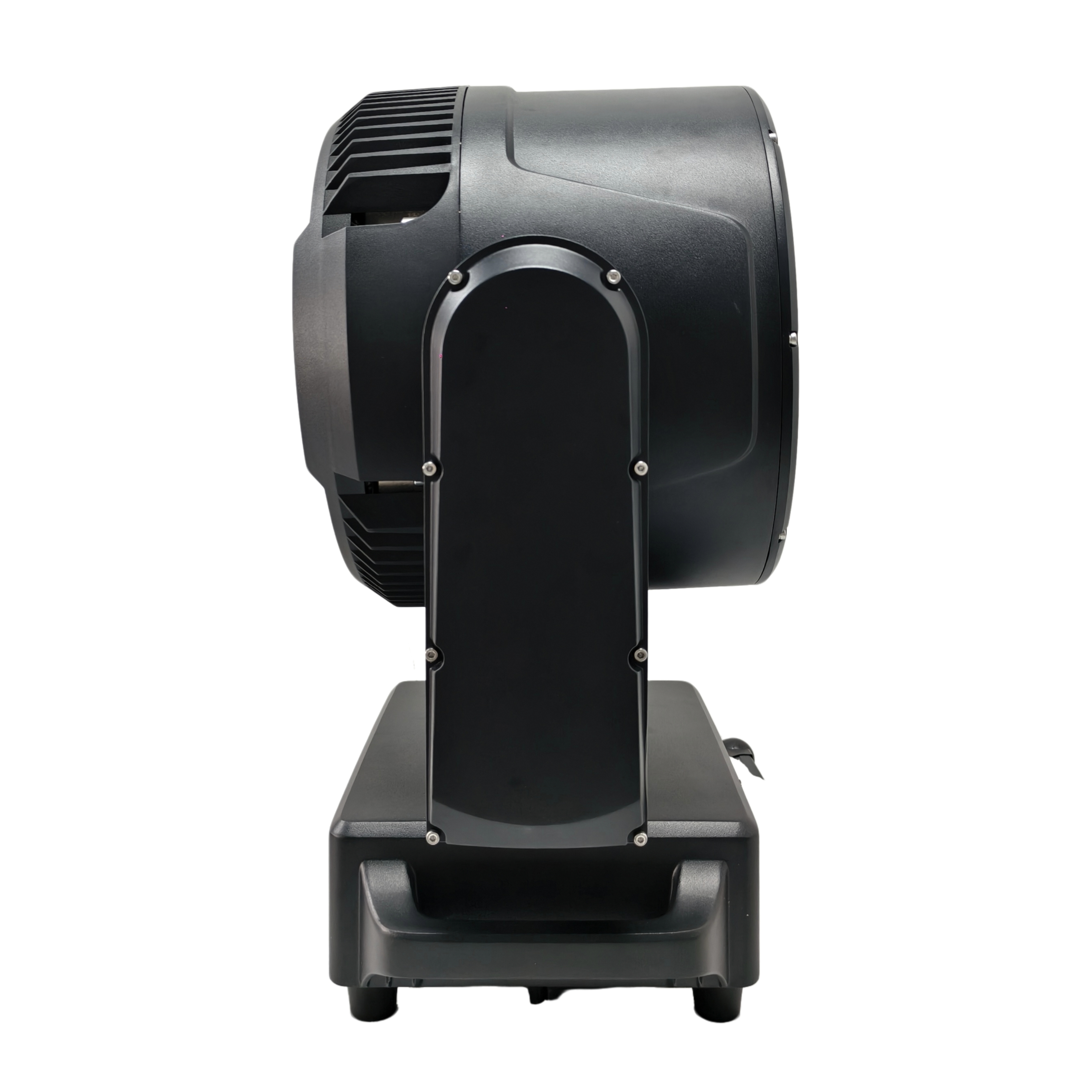

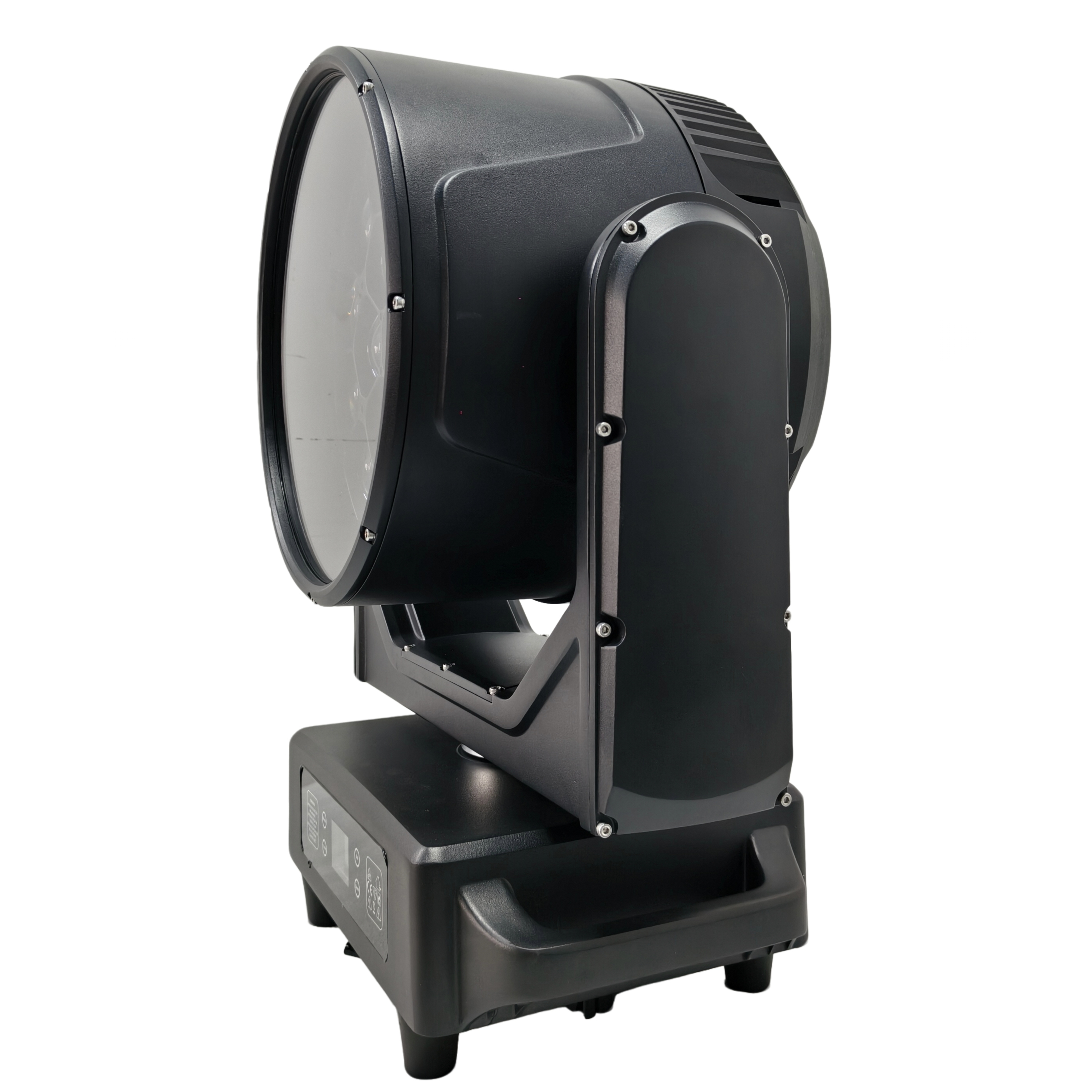

Fixture Specification
Dimensions: 350 × 265 × 420 mm
Net Weight: 16.6 kg
